StoriesMitochondrial analysis of Allen Institute Cells
Follow this story
Using the MitoHacker pipeline to analyze mitochondrial morphology of a publicly available data set.
This story is licensed under the
MIT License
Details ...
Copyright (c) 2025 David Kashatus
Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:
The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.
THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES, OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT, OR OTHERWISE, ARISING FROM, OUT OF, OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.
Chapter 1 - Cell Segmentation
We set out to generate single-cell mitochondrial morphology data from 6 Images downloaded from the Allen Institute for Cell Science. www.allencell.org
The images we analyzed (Available in the Data tab) are of Human IPS cells expressing EGFP-tagged Tom20.
First, we set out to segment the multi-cell images into 88 individual cell images using the Cell Catcher tool. For a description of this tool, click on the Chapter 1 slides. This tool was first described in Rohani, etal. (under the Publications tab).
The input and output images can be found in the Projects tab, along with the parameters that were used to perform the segmentation. The resulting 88 single-cell images were then available for mitochondrial segmentation (Chapter 2).
Chapter 1: Datasets
AICS-Boundaries
Chapter 1: Linked Projects
AICS (Cell Catcher)
Chapter 1: Citations
Mito Hacker: a set of tools to enable high-throughput analysis of mitochondrial network morphology
10.1038/s41598-020-75899-5
Ali Rohani; Jennifer A. Kashatus; Dane T. Sessions; Salma Sharmin; David F. Kashatus
Scientific Reports
(2020)
Chapter 2 - Mitochondrial Segmentation
Following the cell segmentation, we next performed Mito Catcher Analysis on the 88 individual cells identified and segmented using Cell Catcher to created a binary mask of the mitochondrial staining within each cell. For a description of this tool, click on the Chapter 2 slides. This tool was first described in Rohani, etal. (under the Publications tab).
The input and output images can be found in the Projects tab, along with the parameters that were used to perform the mitochondrial segmentation.
The resulting set of 88 single-cell images were then available for mitochondrial analysis (Chapter 3).
Chapter 2: Linked Projects
AICS-SingleCells (Mito Catcher)
Chapter 2: Citations
Mito Hacker: a set of tools to enable high-throughput analysis of mitochondrial network morphology
10.1038/s41598-020-75899-5
Ali Rohani; Jennifer A. Kashatus; Dane T. Sessions; Salma Sharmin; David F. Kashatus
Scientific Reports
(2020)
Chapter 3 - Mitochondrial Analysis
Using the 88 images generated by Mito Catcher, we next set out to generate a database of structural data on the mitochondrial network using the MiA tool. For a description of this tool, click on the Chapter 3 slides. This tool was first described in Rohani, etal. (under the Publications tab).
Using MiA, we were able to measure >125 features of the mitochondrial network of each cell. The input images and resulting database are available in the Projects tab.

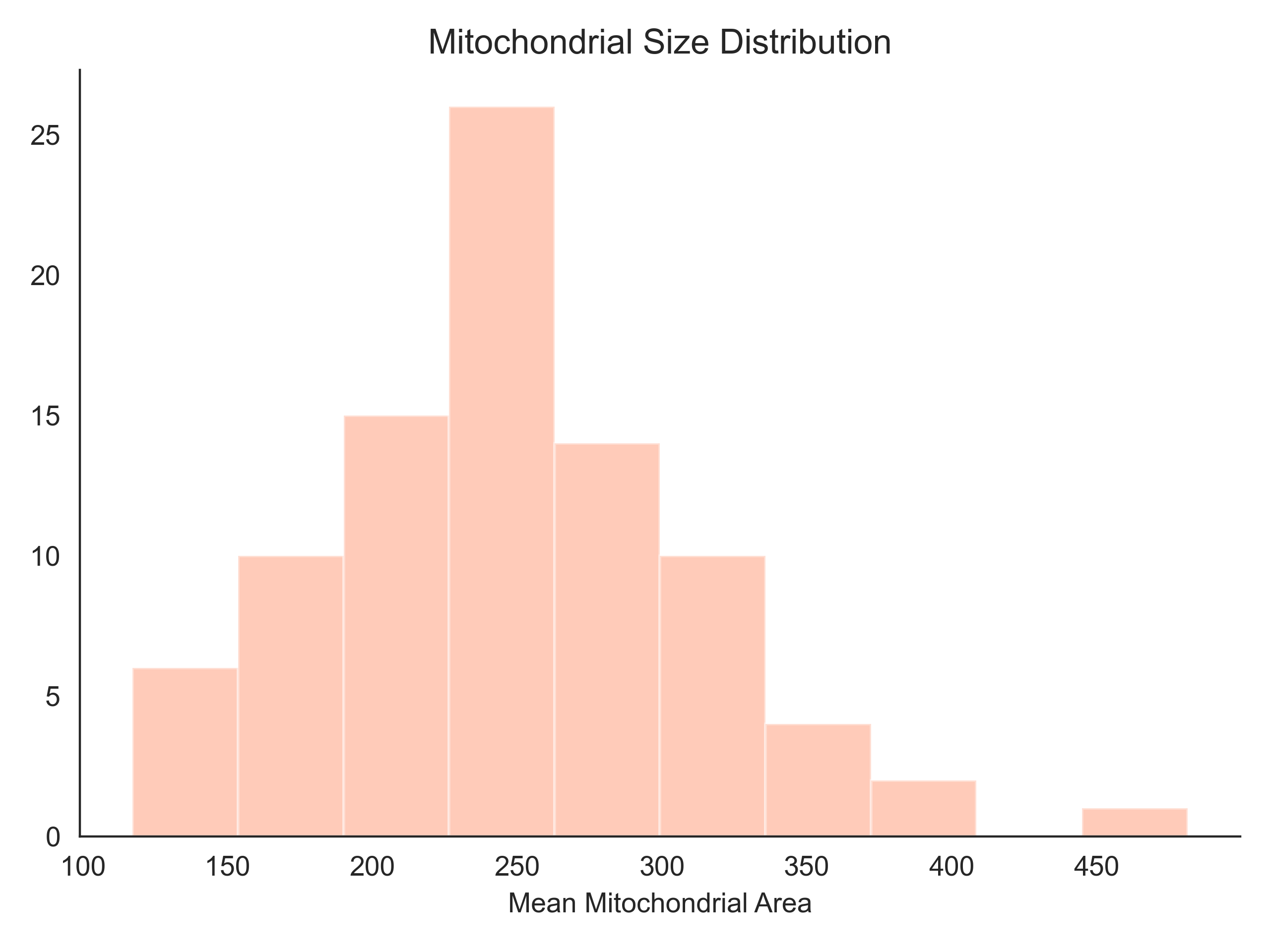

We next used the Inspector tool to generate a series of plots and visualize the data. These plots can be found under the Data tab.
Chapter 3: Datasets
AICS-MiA Charts
Chapter 3: Linked Projects
AICS-MiA (MiA)
Chapter 3: Citations
Mito Hacker: a set of tools to enable high-throughput analysis of mitochondrial network morphology
10.1038/s41598-020-75899-5
Ali Rohani; Jennifer A. Kashatus; Dane T. Sessions; Salma Sharmin; David F. Kashatus
Scientific Reports
(2020)
